From First, Third and Fourth... Using the latest IT technology and infrustructure, System Logic and Levels now can be detected using computers. We have the Control and Monitoring Technology for Electronics, UPS/BESS and Solar Power Plants. For years, we will be pushing several technologies that will become standards of our society in the future.
2025 CB Electronics
True to Life Applications of CodeBase IO
Giant Clocks, Traffic Lights and Elevators are common examples of products in which codebase-io can be more practical and naturalistic in approach.

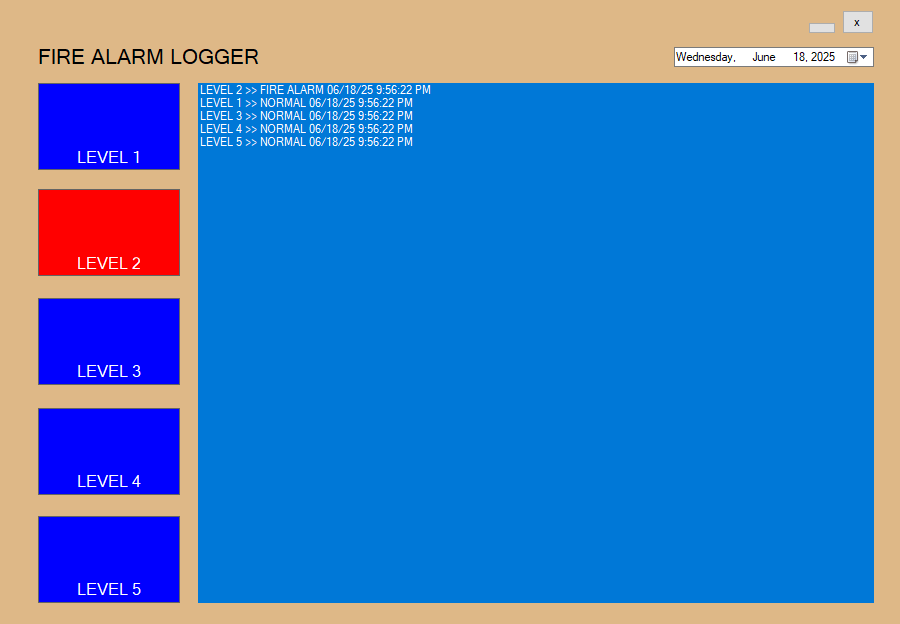

Addressable Fire Alarm Monitoring System with Human Machine Interface (HMI) using PC
$ Monitoring using HMI PC-based design monitors fires rooms and floor sets to improve efficiency and overall monitoring.
2025 CB Electronics

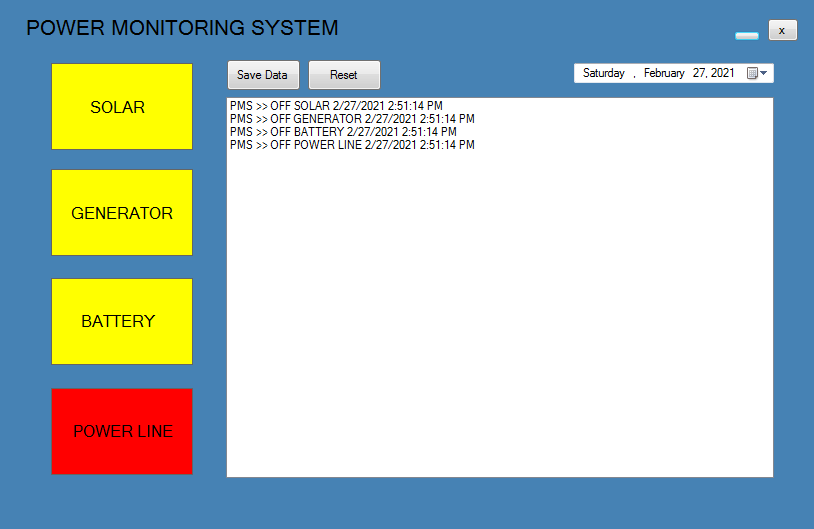

Power Monitoring System with Human Machine Interface (HMI) using PC
$ Monitoring using HMI PC-based design connects to different AC and DC sensors to improve efficiency.
2025 CB Electronics

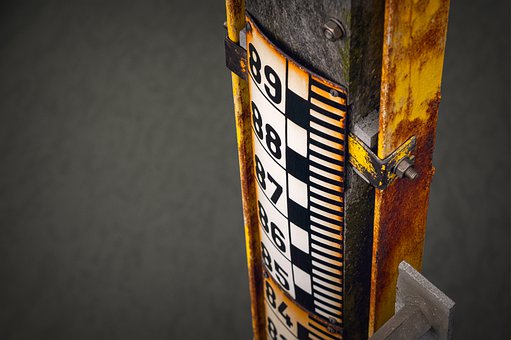

Water Monitoring using Windows Computer
$ Using the latest IT technology and infrustructure, Dams and Water Levels now can be detected using computers.
2025 CB Electronics
Binary Input (BI)
Input ground to the computer means ON and the program language like QB, Visual Basic 6.0 and .Net (C# and Visual Basic) can be used to process the signal.
INP(889) lets you understand input devices if the address is 889
Binary Output (BO)
+5v (logic 1) and GND (logic 0) can be seen to the Pins.
Applications: Switches, Relays and Lamps

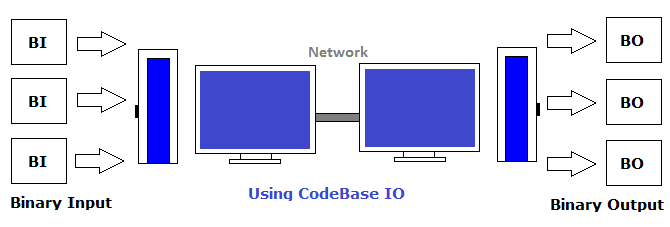

Quick Input and Output (IO) explanation
INPUT -> Processes done by the computer -> OUTPUT: Switch any portion, put indicators ON or OFF or send signals to any remote and next devices.
Created by Engr. Lawrence Albert P. Ilao and Riafe O. Trinidad. All rights will be served.
